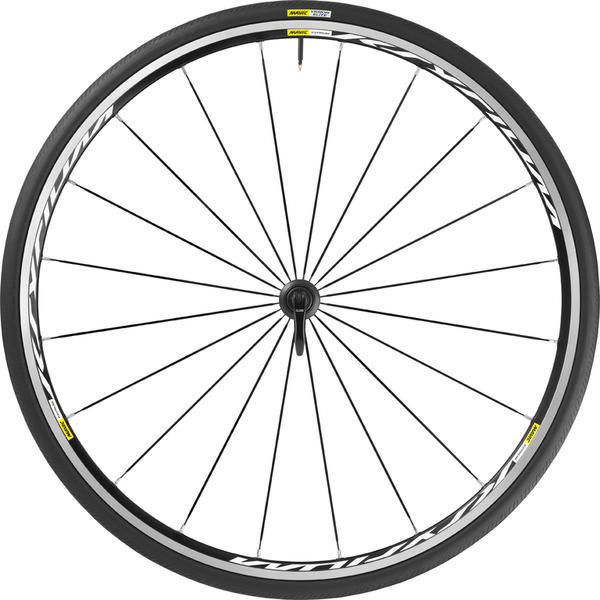

Put in mile after mile with confidence and ease rolling on Mavic’s Ksyrium wheels. The box section rim extrusion and low spoke count makes for a smooth, comfortable ride, while the strong, lightweight welded rims deliver excellent spinning dynamics and climbing abilities. The bladed spokes are radially laced in the front for improved lateral stiffness, while the rear uses Mavic’s exclusive Isopulse lacing pattern (radial on the drive side, 2x on the non-drive side). Isopulse lacing balances the spoke tension, thanks to a wider drive side bracing angle, resulting in higher lateral stiffness under heavy loads, such as when you’re out of the saddle on a climb. Ksyrium also sports Mavic’s QRM bearing and axle system, which keeps friction low and speed high without compromising reliability, eliminating the need to service your hubs. These wheels come with Mavic's well-balanced Yksion Elite tires. They offer an excellent blend of low rolling resistance and secure cornering grip, dry or wet, thanks to the supple 120 TPI casings and the carefully drawn tread patterns. Step up to Ksyrium—your bike will thank you.
Force Transfer System Light:
Reinforcement of a key transmission component: the contact area between the pawl and the hub body is reinforced by two stainless steel inserts, which allows the use of a 100% aluminum hub body.
Optimum energy transfer:
The spokes are laced radially on the drive side and 2-cross on the non-drive-side to maximize drive-side dish, providing a better spoke tension balance between left and right flanges.
Qualité de Roulements Mavic:
Mavic uses only high-quality sealed cartridge bearings. On QRM wheels, these bearings feature double seals (2RS or LLU) along with tight, C3 internal clearances.
Soudé Usiné Process:
After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish, resulting in a stronger, smoother, more reliable rim joint.
Usiné Brut Control:
The rim’s braking surfaces are precisely CNC machined for smooth, predictable braking and less brake chatter.
H2 involves the local strengthening of the rim in the area where the spokes exert the greatest stress. This helps ensure rim longevity and resistance to stress fractures at the spoke holes, a common failure point in aluminum rims.
|Rim Width||15mm, internal|
|Hub(s)||Mavic QRM, aluminum|
|Spokes (Front/Rear)||Stainless-steel, straight-pull, bladed|
|Weight (Front/Rear)||770 grams / 920 grams (1690 grams/pair)|
|Lacing (Front/Rear)||Front: radial; Rear: Isopulse (2x, non-drive; radial, drive-side)|
|Cassette Compatibility||Shimano/SRAM 11-speed or Campagnolo 11-speed|
|Tires||Yksion Elite: 700 x 23c or 700 x 25c|
|Extras||Quick-releases, rim tape, user guide|
* Subject to change without notice.
